JEONIL'S PRODUCTS LINE UP
The worldwide total soulution provider!

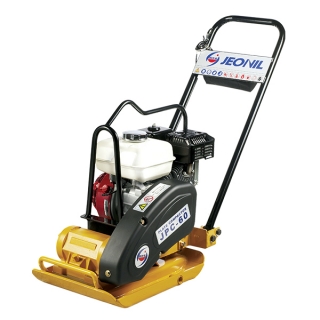

Plate Compactor
『 JPC-60 』
“Designed to compact granular soils and crushed aggregate creating a solid
foundation for walkways, patios, landscaping and more”
l Engineered for Tough
Jobs
- Compact granular
soils and crushed aggregate up to 55cm deep
- Fast travel speed
helps to save time and energy
l Designed to last
- Heavy-duty shock
mounts provide vibration isolation in the components and engine, preventing
component wear and reducing operator fatigue
- Oil level for
vibrating shaft (exciter) is easy to check
l Easy to Work with
- Components in the
Honda engine allow it to run with less vibration and less noise, so it is
easier to be around
- Built to last with
minimal maintenance, so you will stay on the job with less downtime
“Robust and reliable tool designed for compacting soil and achieving a
solid foundation in construction and landscaping projects”
| Model | JPC-60 | |
| Weight | kg(lb) | 69~72 (152~158) |
Operating size (WxLxH) | mm(in) | 375 x 960 x 897 (14.8 x 37.8 x 35.3) |
Compacting size (WxL) | mm(in) | 375 x 336 (14.8 x 13.2) |
| Centrifugal Force | kN(kgf) | 11.1 (1,131) |
| Vibration Frequency | vpm(hz) | 5,700 (95) |
| Travel speed | m/min(ft/min) | 20~25 (65.6~82) |
| Engine | Honda GX-160 (5.5HP) | |
