JEONIL'S PRODUCTS LINE UP
The worldwide total soulution provider!
Plate Compactor

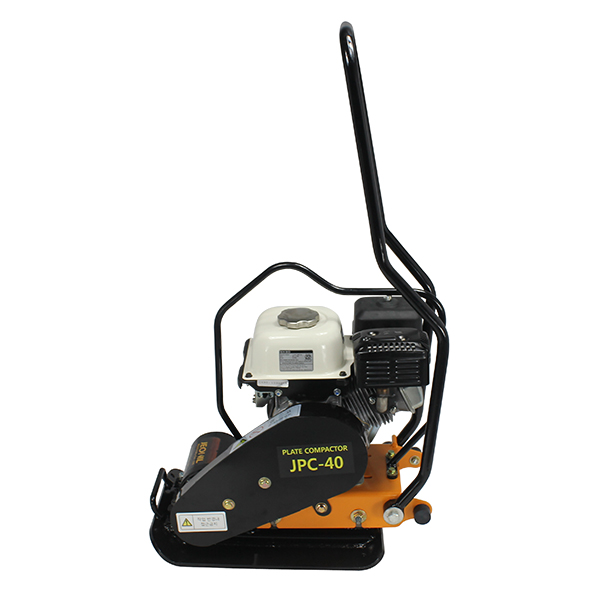

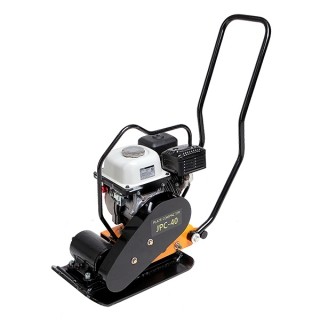

『 JPC-40 』
“Designed to compact granular soils and crushed aggregate creating a solid
foundation for walkways, patios, landscaping and more”
l Engineered for Tough
Jobs
- Compact granular
soils and crushed aggregate up to 55cm deep
- Fast travel speed
helps to save time and energy
l Designed to last
- Heavy-duty shock
mounts provide vibration isolation in the components and engine, preventing
component wear and reducing operator fatigue
- Oil level for
vibrating shaft (exciter) is easy to check
l Easy to Work with
- Components in the
Honda engine allow it to run with less vibration and less noise, so it is
easier to be around
- Built to last with
minimal maintenance, so you will stay on the job with less downtime
“Jeonil protects your investment and is ready to provide you with the
assistance and helpful resources you need”

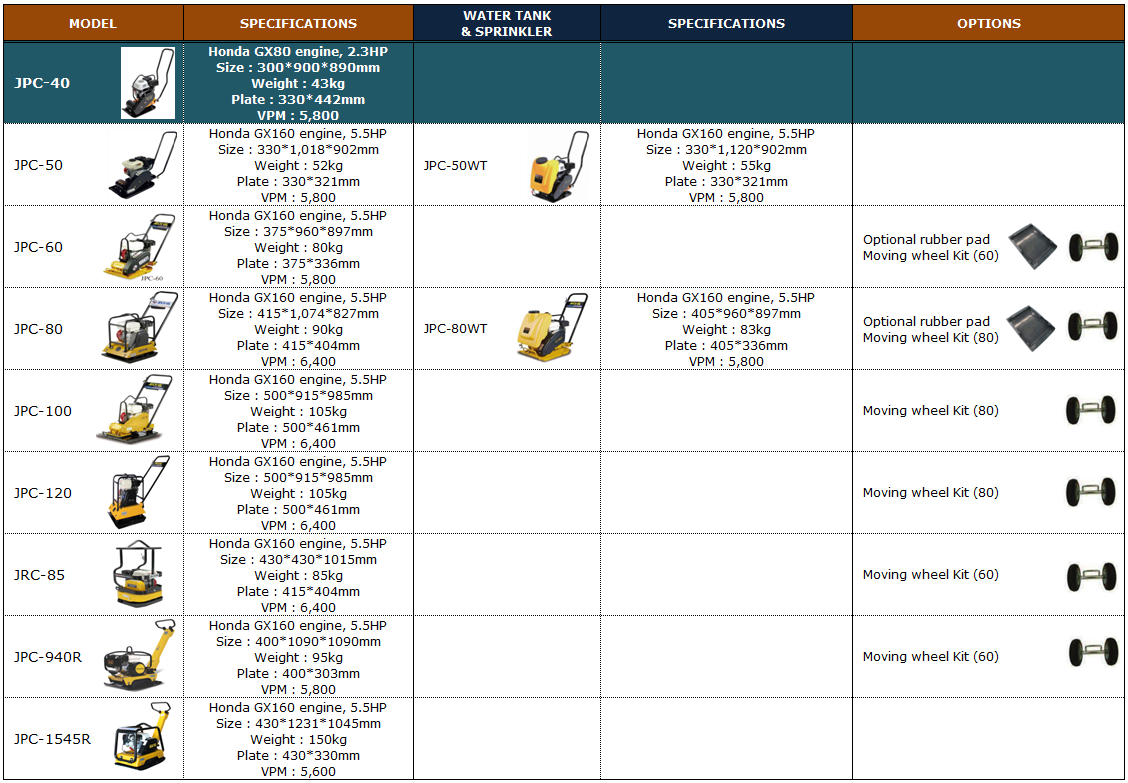

| Model | JPC-40 | |
| Weight | kg(lb) | 43 (88.2) |
Operating size (WxLxH) | mm(in) | 300 x 900 x 890 (11.8 x 35.4 x 35.0) |
Compacting size (WxL) | mm(in) | 300 x 442 (11.8 x 17.4) |
| Centrifugal Force | kN(kgf) | 8.1 (800) |
| Vibration Frequency | vpm(hz) | 5,800 (96) |
| Travel speed | m/min(ft/min) | 22~25 (72.2~82) |
| Engine | Honda GX-80 (2.3HP) | |
